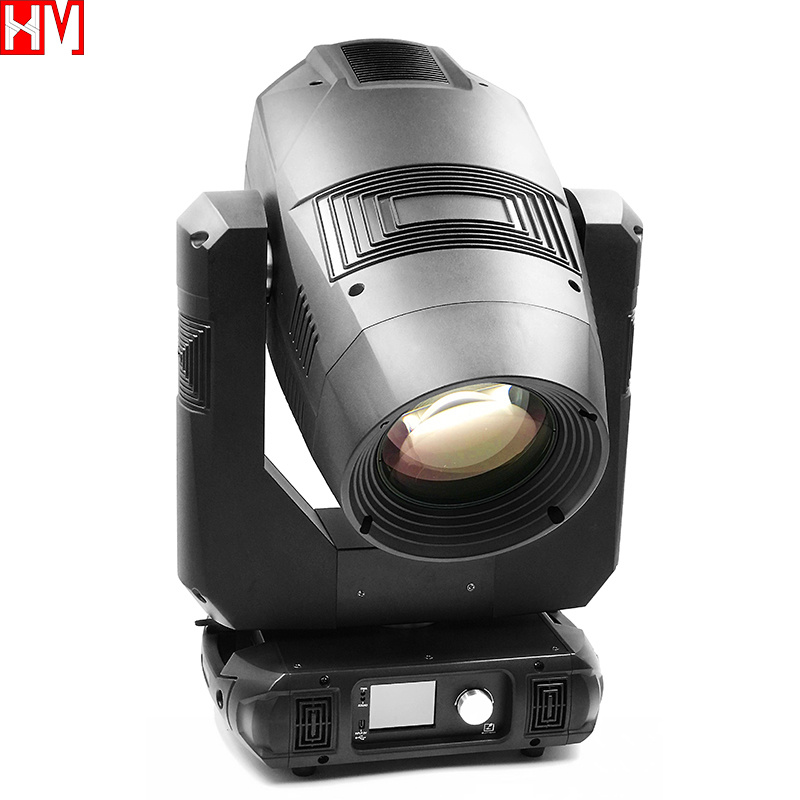

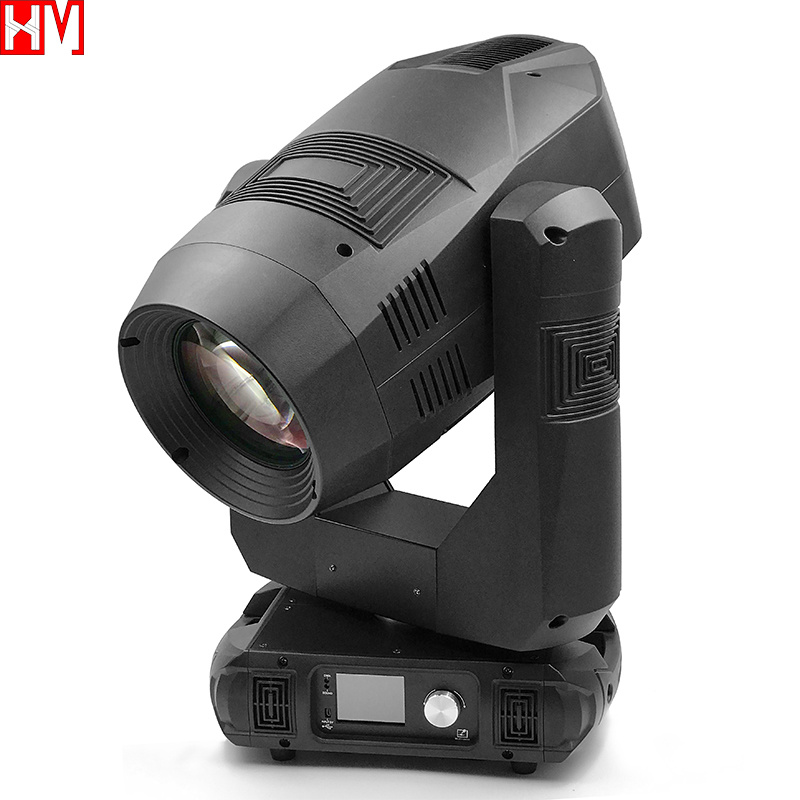

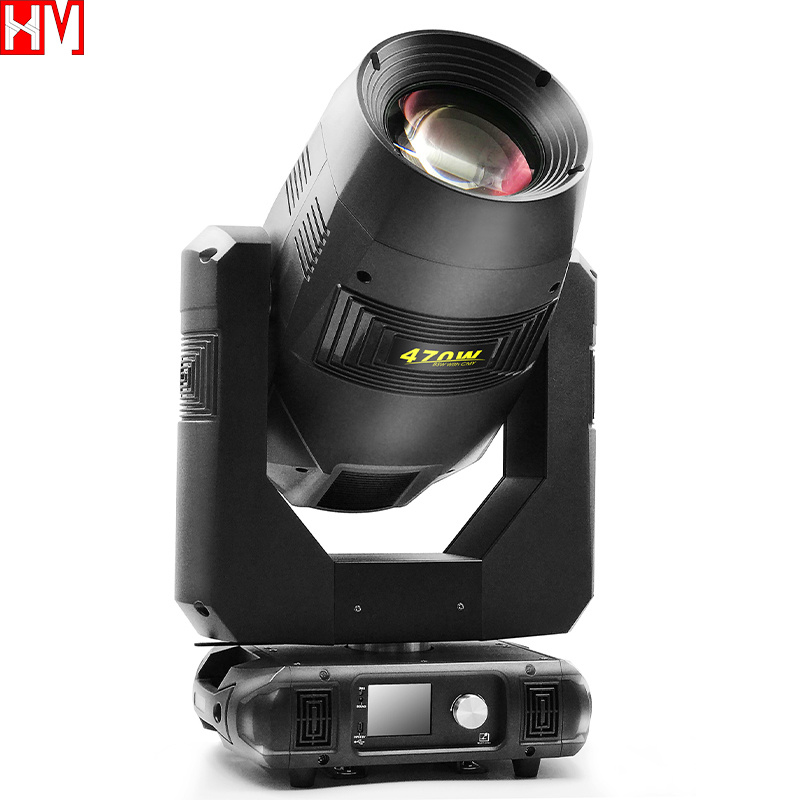

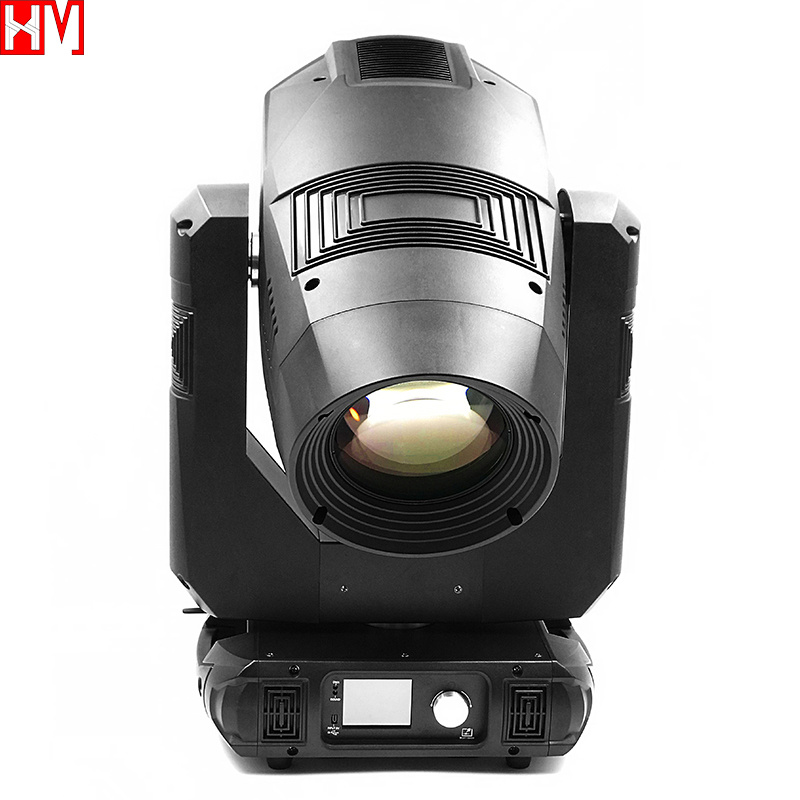

470W Beam 3 IN 1 With CMY Color

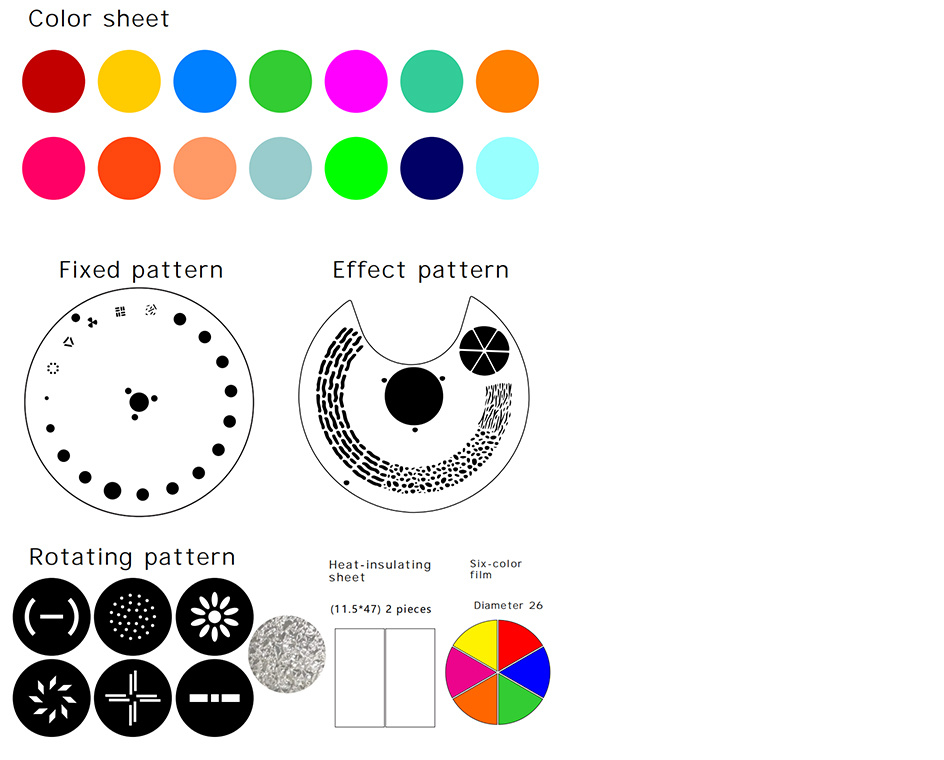

Details Standard Colors And Patterns Download

◆Optical
◆Light source: OSRAM SIRIUS HRI 461W
◆Beam angle: 2.2° - 7°; Spot angle: 5° - 32° ;  Wash angle: 8° - 60°
◆7 Rotating Gobos + Open,
◆18 Static gobos + open,
◆2 Prisms:  6 Facet +8 Facet Prism
◆3 Color wheels: CMY Color Wheel. 0-100% C.M.Y + 5 CTO Colors + White
◆CMY / CTO: CMY + CTO for linear infinity color mixing
◆Electrical
◆Power input, nominal: AC 100-240V - 50/60Hz
◆Max. Power consumption: 600W
◆Power supply unit: Auto-ranging electronic SMPS
◆Main fuse: 250V/10A
◆Control and programming
◆Control channels (DMX): 24 / 28
◆Protocol: DMX-512
◆Display Graphic LCD backlit
◆16-bit control: Dimmer, C,M,Y colors, CTO, focus, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning

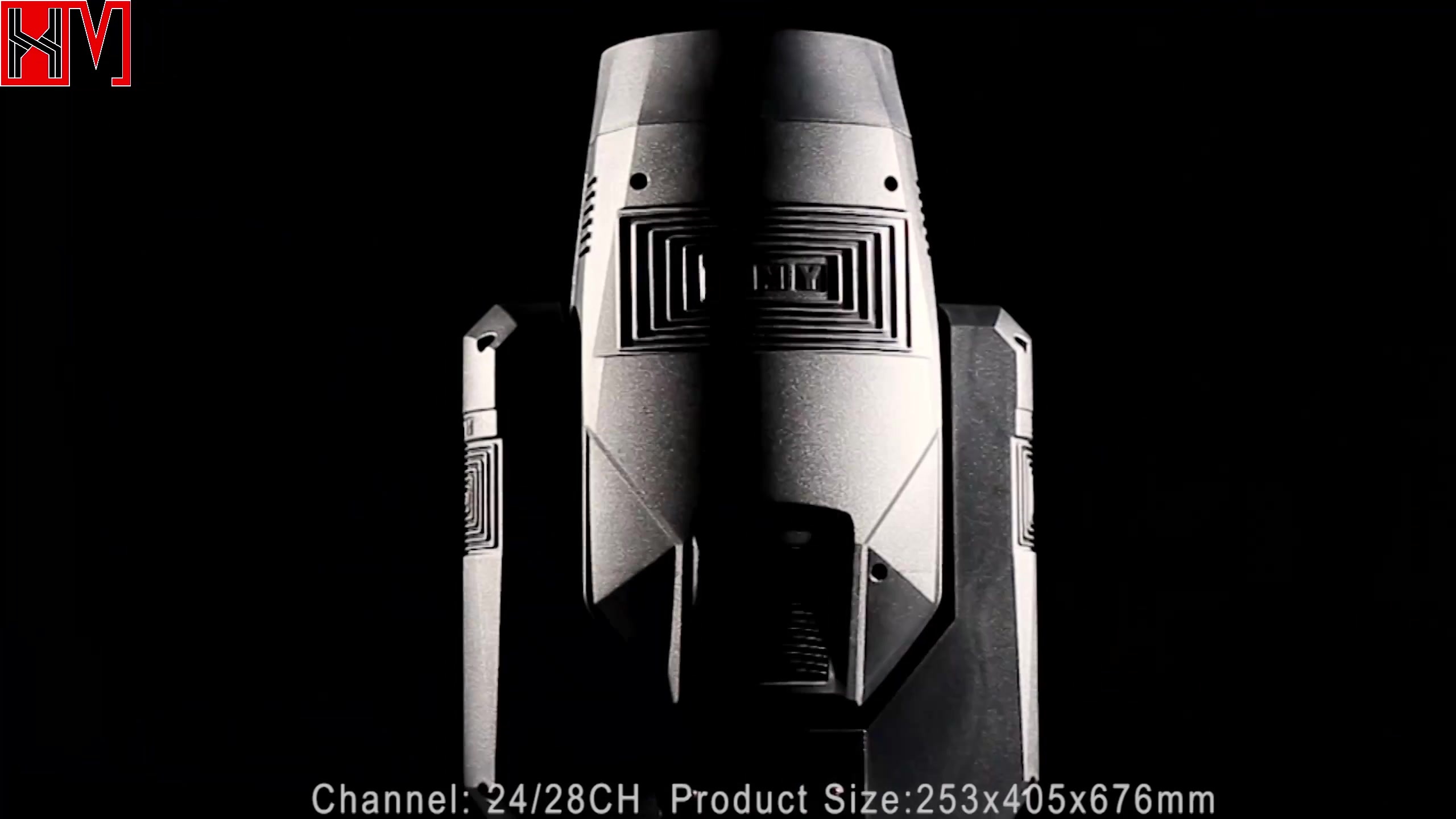

RELATED VIDEOS

close

470W BSW

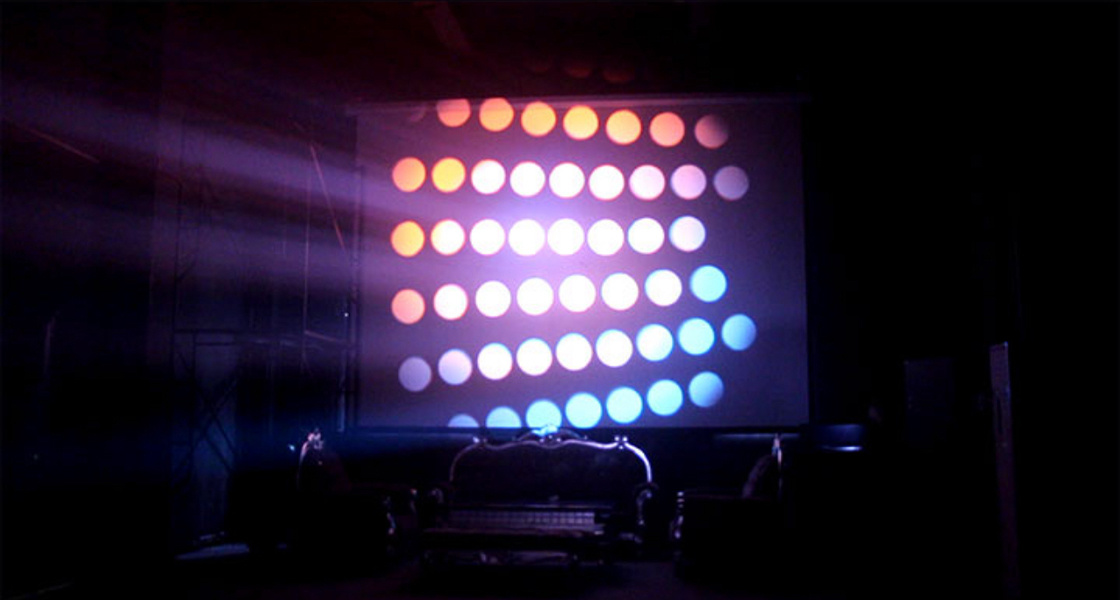

INDUSTRY APPLICATIONS

470.3
470.2
470.1

TECHNICAL SPECIFICATIONS

◆Optical
◆Light source: OSRAM SIRIUS HRI 461W
◆Beam angle: 2.2° - 7°; Spot angle: 5° - 32° ;  Wash angle: 8° - 60°
◆7 Rotating Gobos + Open,
◆18 Static gobos + open,
◆2 Prisms:  6 Facet +8 Facet Prism
◆3 Color wheels: CMY Color Wheel. 0-100% C.M.Y + 5 CTO Colors + White
◆CMY / CTO: CMY + CTO for linear infinity color mixing
◆Electrical
◆Power input, nominal: AC 100-240V - 50/60Hz
◆Max. Power consumption: 600W
◆Power supply unit: Auto-ranging electronic SMPS
◆Main fuse: 250V/10A
◆Control and programming
◆Control channels (DMX): 24 / 28
◆Protocol: DMX-512
◆Display Graphic LCD backlit
◆16-bit control: Dimmer, C,M,Y colors, CTO, focus, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning

470W Beam 3 IN 1 With CMY Color
