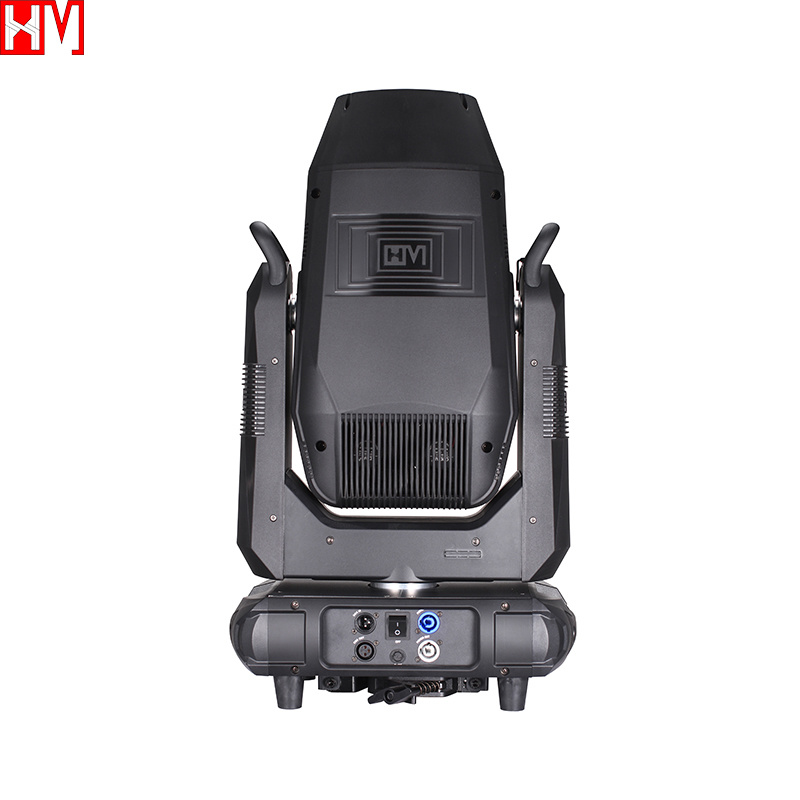

North Star-H8

Details Standard Colors And Patterns Download

Electrical Specifications
Input Voltage: AC 100-240V, 50/60Hz
Rated Power: 900W
Protection Rating: IP20
Operating Temperature: 0°C - 45°C
Light Source System
Light Source: 800W LED Module
LED Lifespan: 20,000 hours
Color Temperature: 8700K
Color Rendering Index (CRI):
Standard Mode: Ra > 70
High CRI Mode: Ra > 90
Optical Performance
Zoom Range: 4.5° - 45° (linear zoom)
Dimming System: 0-100% linear dimming
Frost System: 0-100% linear frost diffusion
Iris Adjustment: 6% - 100% smooth control
Mechanical & Structural Design
Horizontal Pan: 540° (16-bit precision)
Vertical Tilt: 270° (16-bit precision)
Shutter System: 4 independent shutters, individually closable and rotatable by 90°

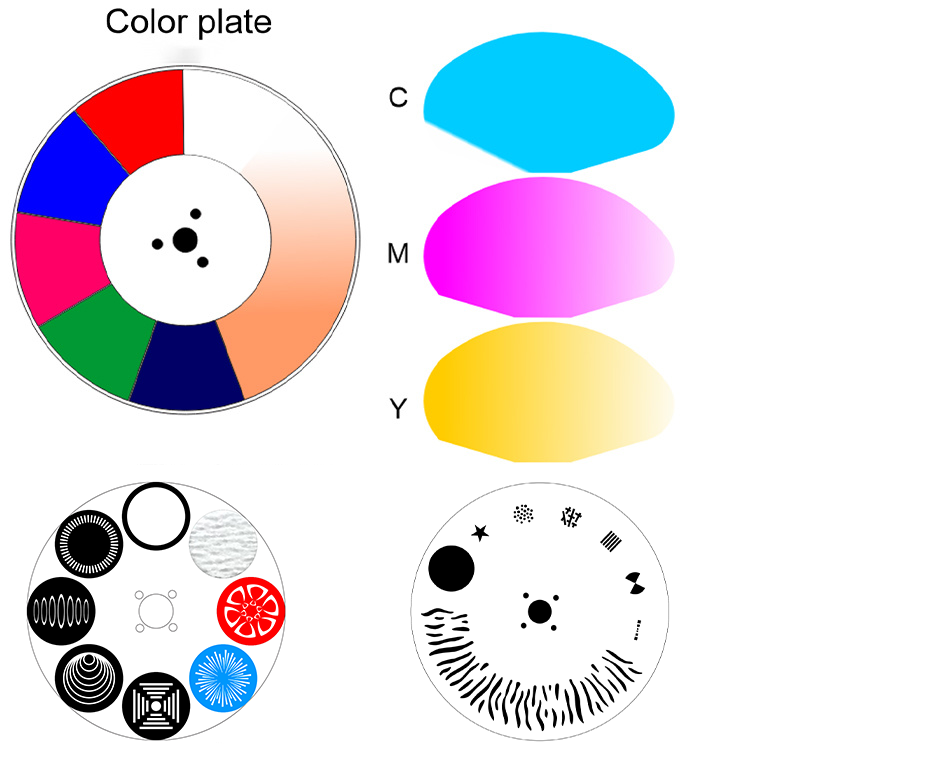

Prism & Gobo:
Prism Plate: Quad prism effect

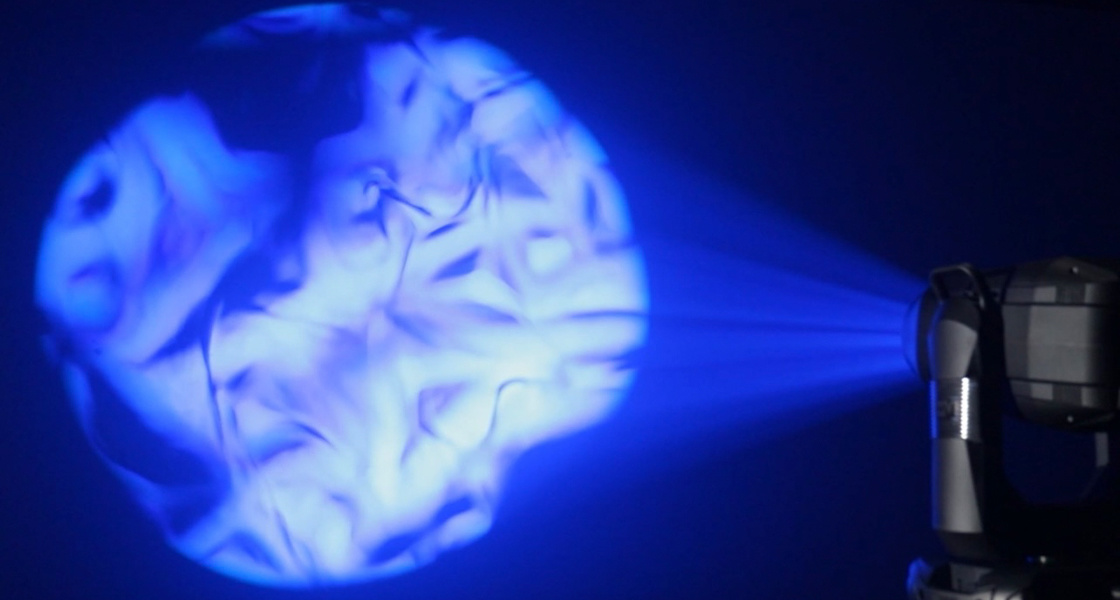

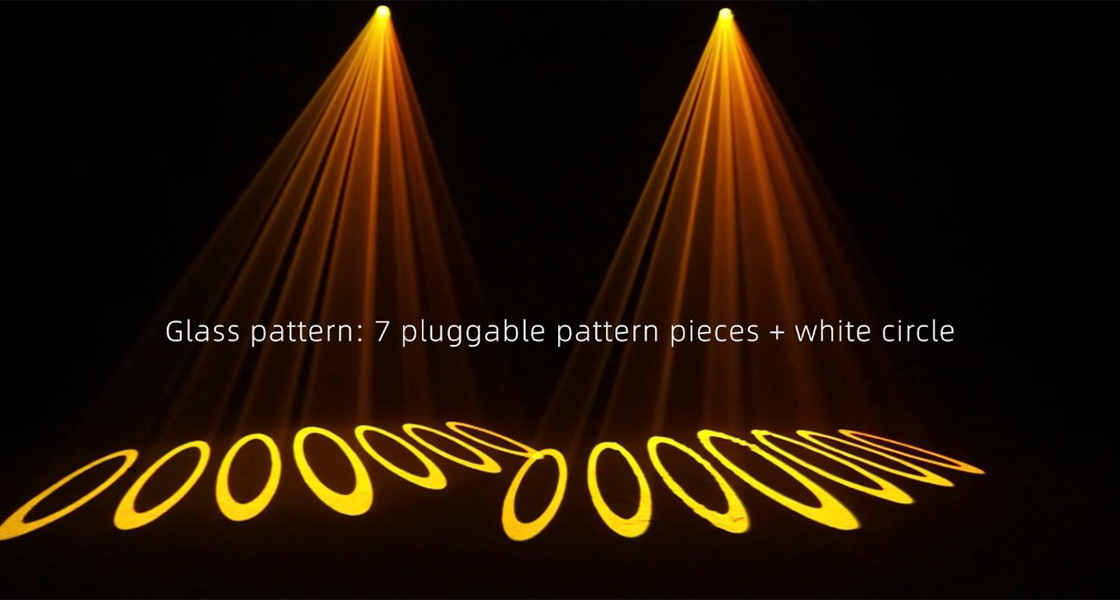

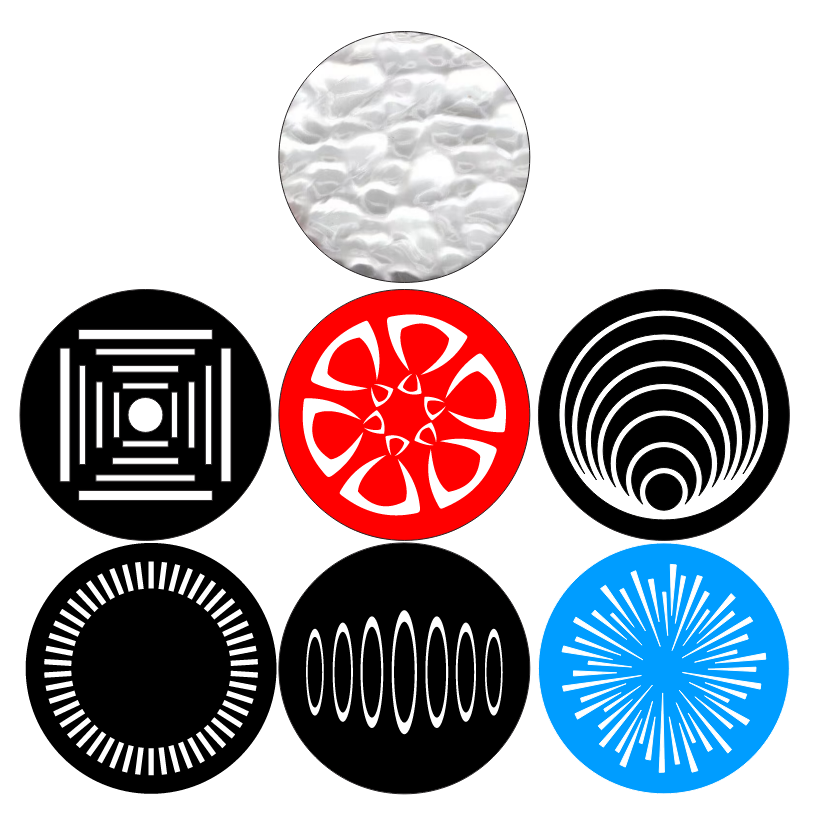

Glass Gobos: 6 interchangeable patterns + white + water ripple effect
Control & Interfaces
Signal Interface: 3-pin XLR / 5-pin XLR (optional)
Control Protocols: DMX512, RDM
Channel Modes: 34CH / 39CH / 56CH (DMX512 compliant)
Operating Modes: Auto-run, Master/Slave synchronization

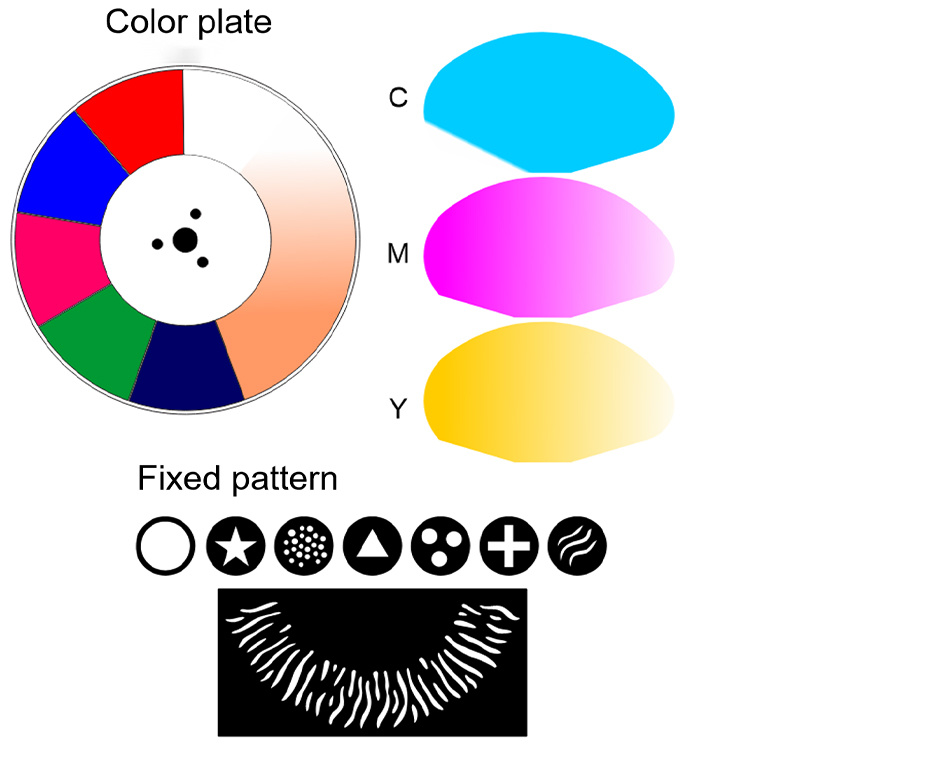

Color & Effects
Fixed Colors: 6 preset colors + white + effects
CMY Mixing System: Independent CMY color mixing channels
Color Temperature Adjustment: CTO 2500K - 6500K (linear adjustment)
Special Effects
Strobe System:
Frequency: Up to 25Hz
Modes: Random strobe, Pulse strobe
User Interface
Display: 2.8-inch touchscreen LCD
Language Support: Chinese/English bilingual
Screen Adjustment: 180° rotatable

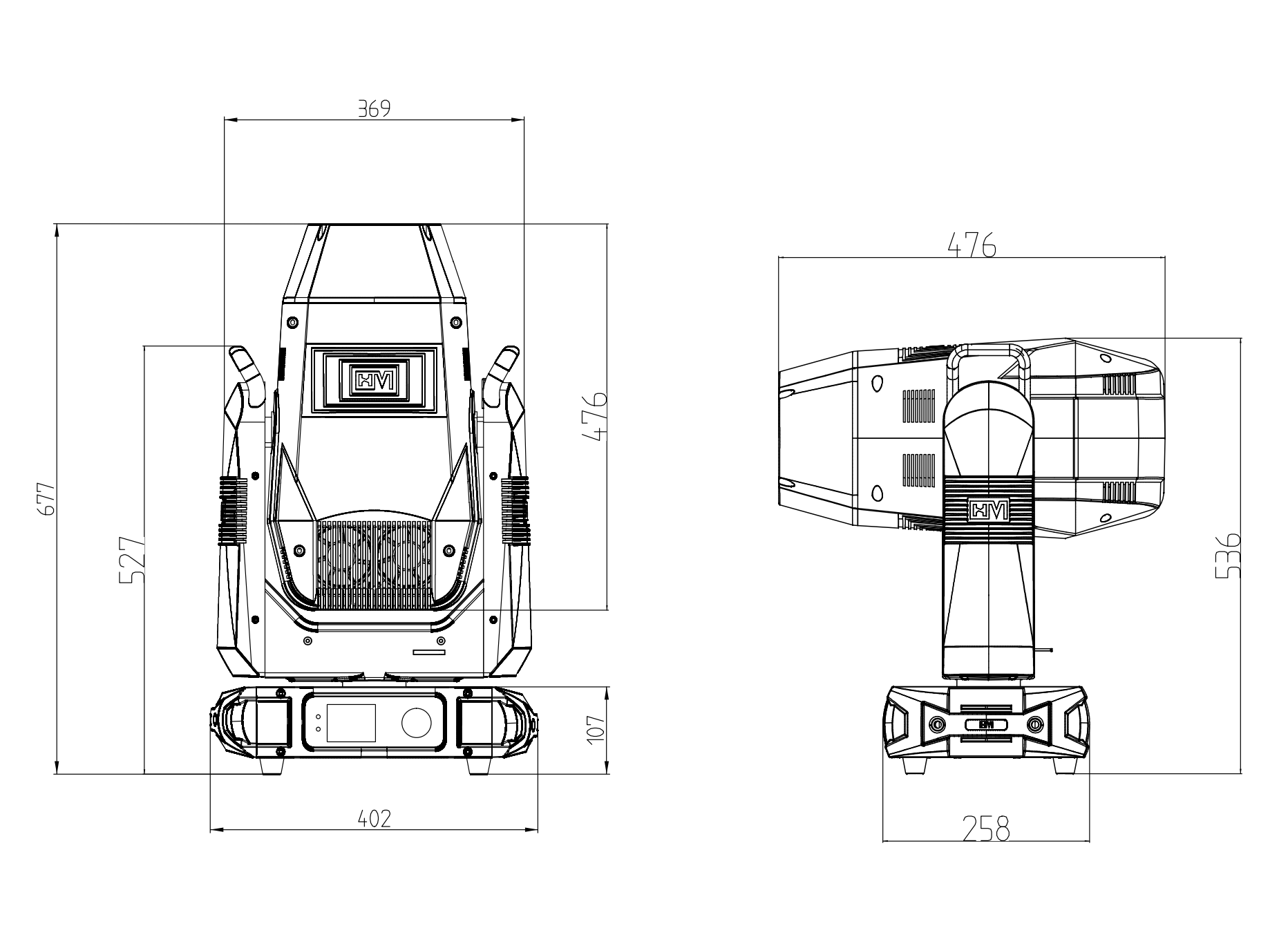

Physical Specifications

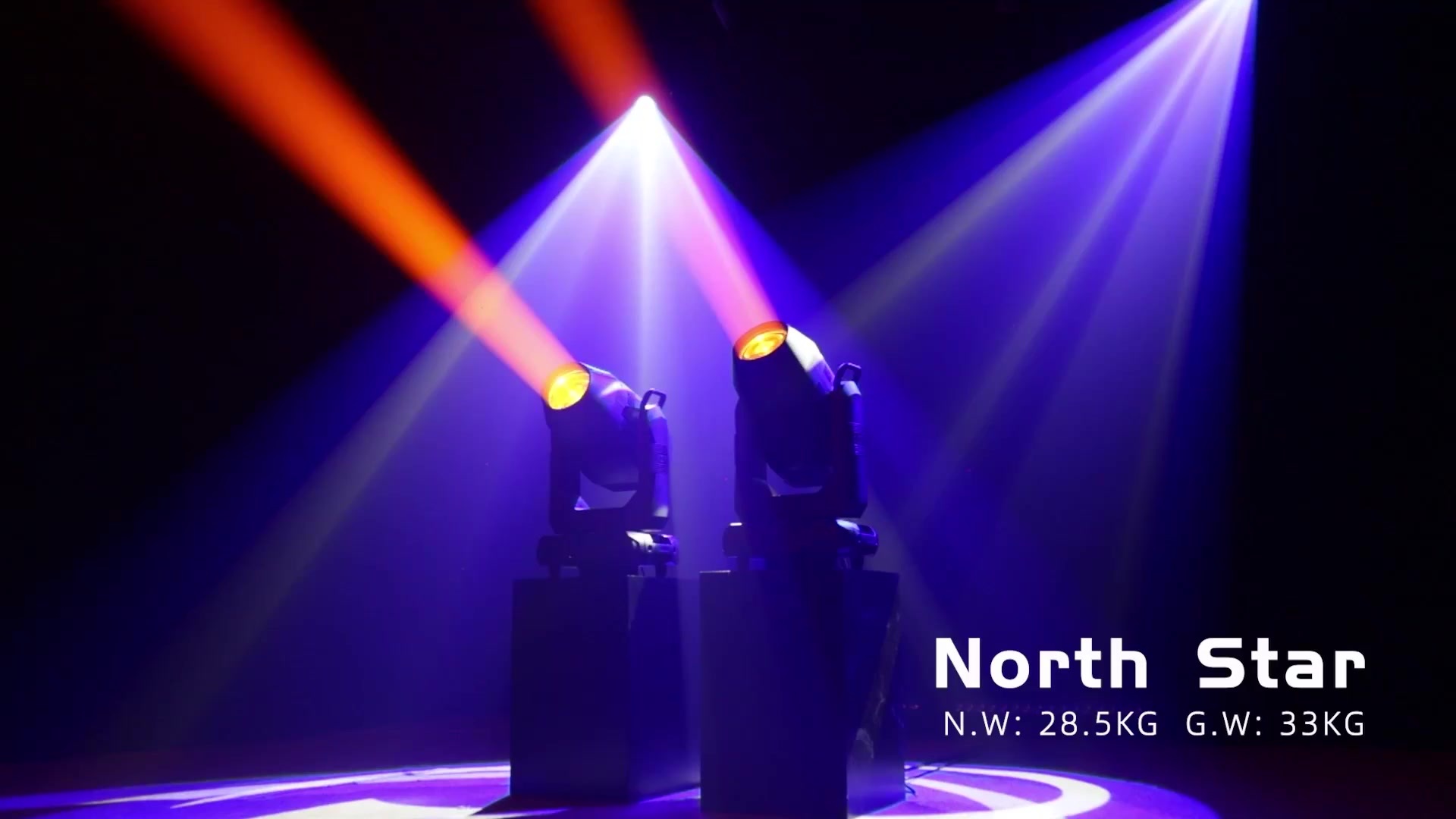

Net Weight: 28.5 kg
Gross Weight: 33 kg
Applications
Ideal for stage productions, concerts, exhibitions, and architectural lighting.

RELATED VIDEOS


close

North Star-H8

INDUSTRY APPLICATIONS


H8.1
H8.2
H8.3

TECHNICAL SPECIFICATIONS


Electrical Specifications
Input Voltage: AC 100-240V, 50/60Hz
Rated Power: 900W
Protection Rating: IP20
Operating Temperature: 0°C - 45°C
Light Source System
Light Source: 800W LED Module
LED Lifespan: 20,000 hours
Color Temperature: 8700K
Color Rendering Index (CRI):
Standard Mode: Ra > 70
High CRI Mode: Ra > 90
Optical Performance
Zoom Range: 4.5° - 45° (linear zoom)
Dimming System: 0-100% linear dimming
Frost System: 0-100% linear frost diffusion
Iris Adjustment: 6% - 100% smooth control
Mechanical & Structural Design
Horizontal Pan: 540° (16-bit precision)
Vertical Tilt: 270° (16-bit precision)
Shutter System: 4 independent shutters, individually closable and rotatable by 90°
Prism & Gobo:
Prism Plate: Quad prism effect
Glass Gobos: 6 interchangeable patterns + white + water ripple effect
Control & Interfaces
Signal Interface: 3-pin XLR / 5-pin XLR (optional)
Control Protocols: DMX512, RDM
Channel Modes: 34CH / 39CH / 56CH (DMX512 compliant)
Operating Modes: Auto-run, Master/Slave synchronization
Color & Effects
Fixed Colors: 6 preset colors + white + effects
CMY Mixing System: Independent CMY color mixing channels
Color Temperature Adjustment: CTO 2500K - 6500K (linear adjustment)
Special Effects
Strobe System:
Frequency: Up to 25Hz
Modes: Random strobe, Pulse strobe
User Interface
Display: 2.8-inch touchscreen LCD
Language Support: Chinese/English bilingual
Screen Adjustment: 180° rotatable
Physical Specifications
Net Weight: 28.5 kg
Gross Weight: 33 kg
Applications
Ideal for stage productions, concerts, exhibitions, and architectural lighting.
